Vulcanized Neoprene Rubber Gasket mould compression mold

Short Description:

The product made from rubber as raw material and vulcanized under high temperature and high pressure with a mold is called a rubber mould product. The larger one has automobile tires, and the smallest one has a lighter sealing ring with a diameter of only 50 millimeters.

Product Specification: Depend on your sample/drawing design

Mold Cavity: Single or Multi-cavity

Mold Steel: S50C/P20H/718/H13/S136/2316/2738 etc.

Mold Runner: Cold/Hot Runner-point way,side way,direct gate

Mold Base: LKM,DME,HASCO standard etc,World standard

Mould Life: at least 500,000 shots,Depend on mold steel

Mould Design Software: UG, PROE, CAD, CAXA etc.

Mould Surface Treatment: Mirror polished

Export Port: Ningbo/Shanghai

Shipping: By Sea or By air

Payment: T/T,Western Union,Credit card,E-checking,Paypal,L/C

Note: Compression Mould without runner

Other: Please inform your requirement when request quote.

Send email to us Download as PDF

Product Detail

Deying Mould Factory Video

Mold Production Video

DEYING manufactures rubber molds, such as auto parts rubber molds, oil seal rubber molds, seals and other rubber product molds, and provides customers with a complete set of mold design, processing, production and other system services.

DEYING MOLD produces a variety of rubber material compression moulds, vulcanized forming molding, if you need rubber molds, such as natural rubber( NBR )product molds, styrene butadiene rubber( SBR )product molds,Polyurethane(PU) rubber product moldings,CR, EPDM, SR, IIR ect. rubber material mouldings,welcome you contact us.

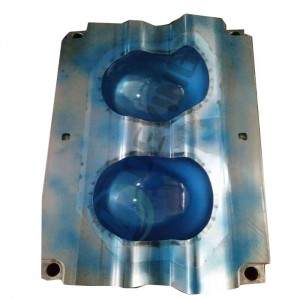

Vulcanized Neoprene Rubber Gasket mould compression mold-1

Vulcanized Neoprene Rubber Gasket mould compression mold

The product made from rubber as raw material and vulcanized under high temperature and high pressure with a mold is called a rubber model product. The larger one has automobile tires, and the smallest one has a lighter sealing ring with a diameter of only 50 millimeters. The mold material, dimensional accuracy, exhaust and mold opening difficulty, etc. all directly affect the quality, labor intensity, and production efficiency of rubber products. At the same time, the selection of mold material, heat treatment and other manufacturing processes, as well as the quality of mold assembly, directly affect the service life of the mold. Therefore, when designing the mold, firstly, we should carefully analyze and study the characteristics of the shape and structure of the rubber parts, and use this as a basis to select and design a reasonable mold structure, reasonable material and heat treatment process to meet the requirements of rubber products and the use of molds. It is required that the mold is easy to open after vulcanization, which can provide the production efficiency and the service life of the mold, thereby improving the economic benefit.
