Silicone rubber Mould rubber product parts molds

Short Description:

When designing the mold, firstly, carefully analyze and study the characteristics of the shape and structure of the rubber parts, and use this as a basis to select and design a reasonable mold structure, reasonable material and heat treatment process to meet the requirements of rubber products and the use of molds. , The mold is easy to open after vulcanization, which can provide the production efficiency and the service life of the mold, thereby improving the economic benefit.

Product Specification: Depend on your sample/drawing design

Mold Cavity: Single or Multi-cavity

Mold Steel: S50C/P20H/718/H13/S136/2316/2738 etc.

Mold Runner: Cold/Hot Runner-point way,side way,direct gate

Mold Base: LKM,DME,HASCO standard etc,World standard

Mould Life: at least 500,000 shots,Depend on mold steel

Mould Design Software: UG, PROE, CAD, CAXA etc.

Mould Surface Treatment: Mirror polished

Export Port: Ningbo/Shanghai

Shipping: By Sea or By air

Payment: T/T,Western Union,Credit card,E-checking,Paypal,L/C

Note: Compression Mould without runner

Other: Please inform your requirement when request quote.

Send email to us Download as PDF

Product Detail

Deying Mould Factory Video

Mold Production Video

DEYING MOLD produces rubber seal molds, rubber product molds,Silicone rubber Mould, rubber product parts molds and polyurethane seal molds. The quality is guaranteed, and they are exported to all parts of the country. Welcome to contact

Vulcanized Neoprene Rubber Gasket mould compression mold-1

Industrial Natural Vulcanized Seal Rubber Products mould for sales

Vulcanized Neoprene Rubber Gasket mould compression mold

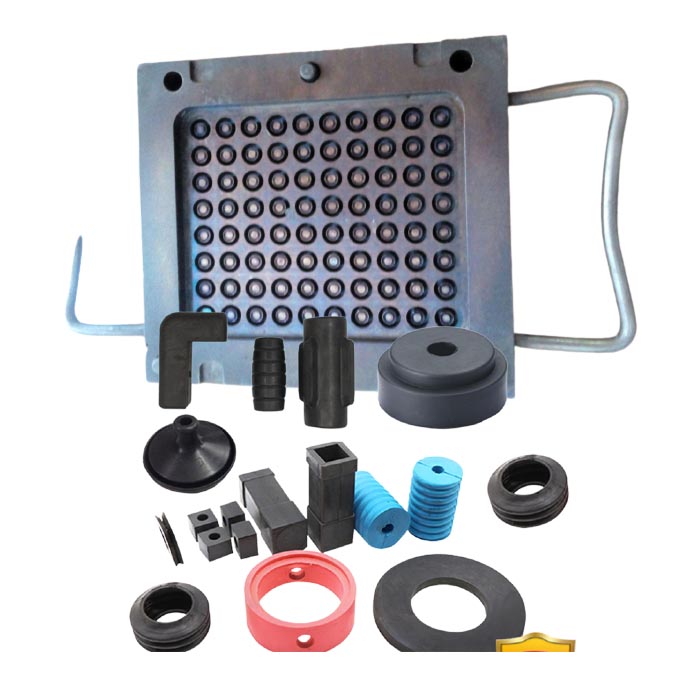

Vulcanized Silicone Rubber Parts molding for Electrical Appliances

The product made from rubber as raw material and vulcanized under high temperature and high pressure with a mold is called a rubber model product. The larger one has automobile tires, and the smallest one has a lighter sealing ring with a diameter of only 50 millimeters. The mold material, dimensional accuracy, exhaust and mold opening difficulty, etc. all directly affect the quality, labor intensity, and production efficiency of rubber products. At the same time, the selection of mold material, heat treatment and other manufacturing processes, as well as the quality of mold assembly, directly affect the service life of the mold. Therefore, when designing the mold, firstly, we should carefully analyze and study the characteristics of the shape and structure of the rubber parts, and use this as a basis to select and design a reasonable mold structure, reasonable material and heat treatment process to meet the requirements of rubber products and the use of molds. It is required that the mold is easy to open after vulcanization, which can provide the production efficiency and the service life of the mold, thereby improving the economic benefit.
