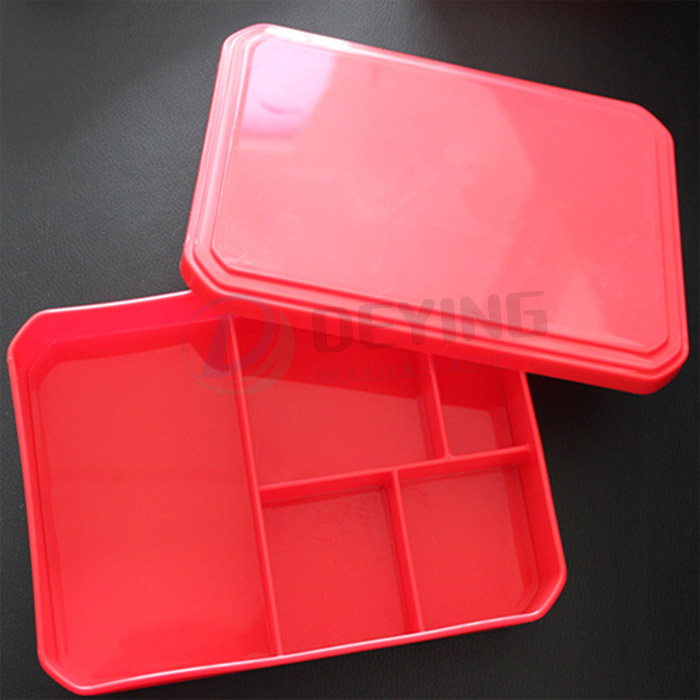

Food lunch box mould disposable thin wall box plastic injection moulds

Short Description:

Deying mould factory has extensive experience in producing thin wall product molds,especially plastic injection disposable lunch boxes mold,food container moldings Thinwall mould injection technical tips: 1. Interlock system design is one of important point for thinwall injection molds. 2. Special cooling system and ejection system design . 3. High precision and good machining process. 4. Choose the right mold steel for all of components in mould. 5. Unique air venting...


  • Product Specification: Depend on your sample/drawing design
  • Mold Cavity: Single or Multi-cavity
  • Mold Steel: S50C/P20H/718/H13/S136/2316/2738 etc.
  • Mold Runner: Cold/Hot Runner-point way,side way,direct gate
  • Mold Base: LKM,DME,HASCO standard etc,World standard
  • Mould Life: at least 500,000 shots,Depend on mold steel
  • Mould Design Software: UG, PROE, CAD, CAXA etc.
  • Mould Surface Treatment: Mirror polished
  • Export Port: Ningbo/Shanghai
  • Shipping: By Sea or By air
  • Payment: T/T,Western Union,Credit card,E-checking,Paypal,L/C
  • Note: Compression Mould without runner
  • Other: Please inform your requirement when request quote.
  • Product Detail

    Deying Mould Factory Video

    Mold Production Video

    Product Tags

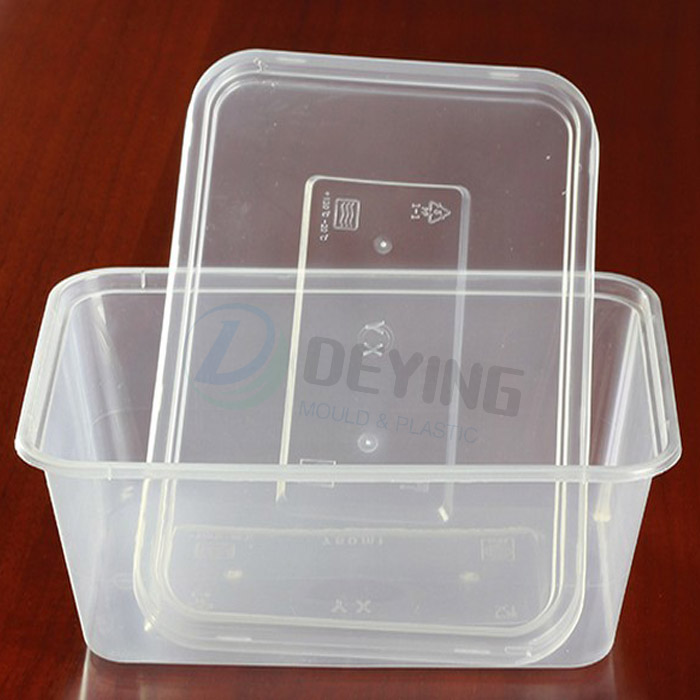

    Deying mould factory has extensive experience in producing thin wall product molds,especially plastic injection disposable lunch boxes mold,food container moldings

    Deying mould welcome you_1

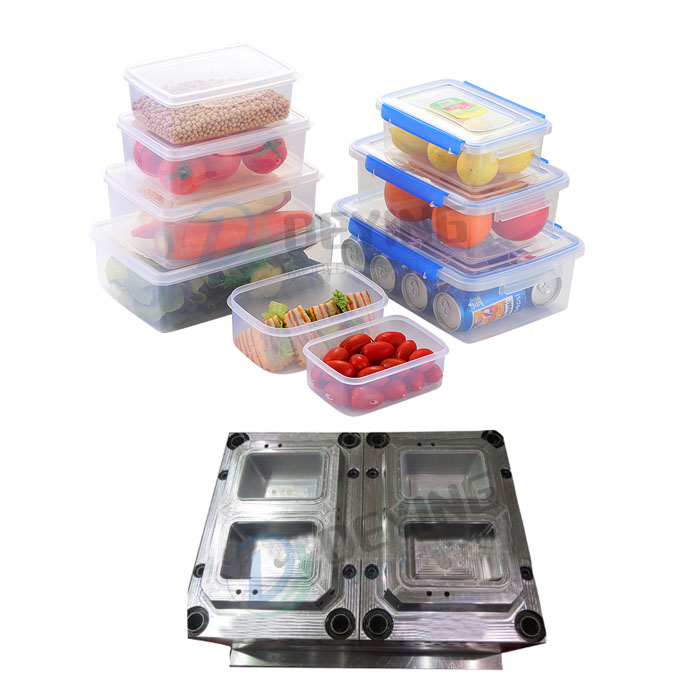

    food storage box mold detail_1

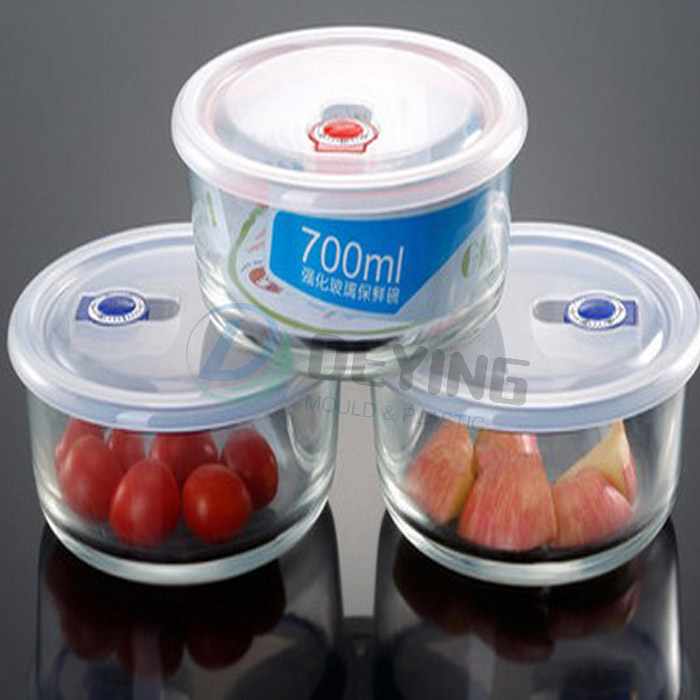

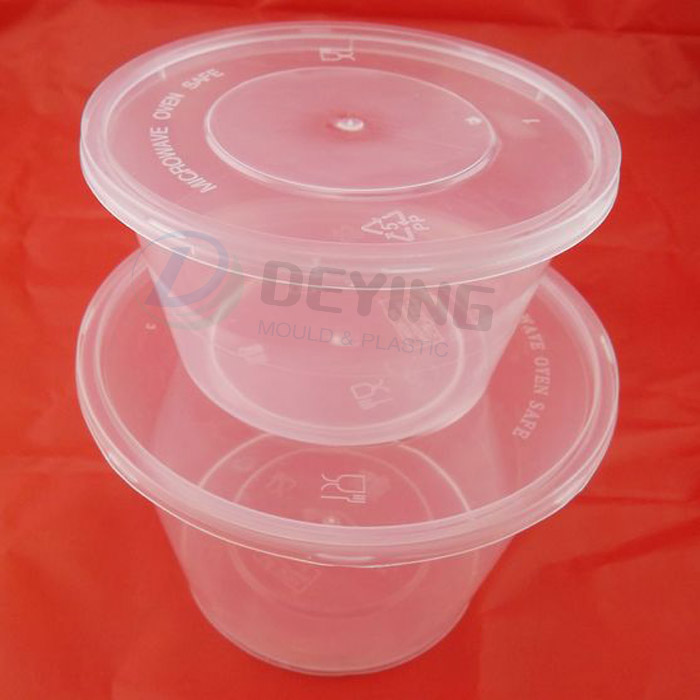

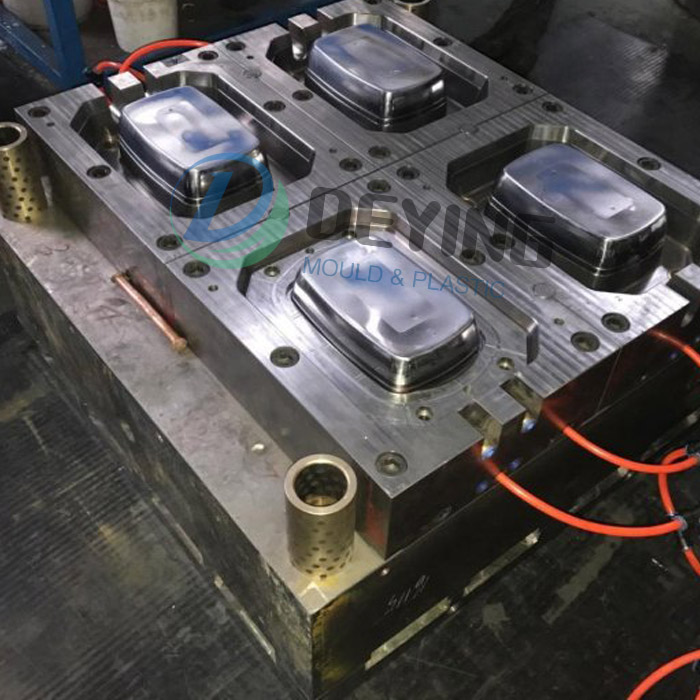

    food container mould

    Thinwall mould injection technical tips:

    1. Interlock system design is one of important point for thinwall injection molds.
    2. Special cooling system and ejection system design .
    3. High precision and good machining process.
    4. Choose the right mold steel for all of components in mould.
    5. Unique air venting system for the thin wall molding.
    6. High speed injection system .
    7. In mold label design on the molds.

    How to choose the steel for thin wall molds?

    In view of high speed high pressure injection, it need to use more than HRC42 hardness steel to guarantee long time mold life. Moreover ,box's raw material is usually clear transparent,this also determines the need for a high polishing steel.
    Therefore, based on the above characteristics,usually, we recommend using S136 steel with HRC43-45 hardness.

    However,H13 steel with vacuum hardened also have HRC43-45 and it can be the second choice for economic invest.

    plastic injection Mould compression mold show_3

    Plastic injection mold and SMC/BMC compression mold factory,one-stop service .
    Bottle Cap & Preform Mold SMC/BMC Compression Mold   Battery Box/Container Mold   Medical Products Mold
    Military Products Mold   Commodity Plastic Injection Auto Parts Mold See All Categories

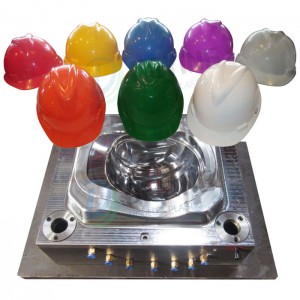

    1. Plastic injection helmet Injection Mold
    2. Model: All
    3. Size: Depend on Sample/3D Design drawing
    4. Product Material: PP,ABS,PE ect.
    5.Available for Customized

    Mould Name      plastic injection mould and SMC/BMC compression mould
    Mould Cavity 1*Multi-cavity,depend on your requirement or machine specification
    Mould Steel  S50C/P20H/718/H13/S136/2316/2738etc
    Steel Hardness  Steel Hardness
    Mould Base  Mould Base
    Mould Runner  Hot/Cold Runner 【Compression mould without runner,heating will oil or electric
    Hot Runner Type  China Hot Runner,YUDO, Husky, Synventive,Thermoplay,Ewikon, Mold Master,DME
    Gate  Point Gate, Side Gate, direct gate way,Sub-Gate,Tab Gate, Fan Gate
    Ejection  Stripper Plate, Ejection Block, Ejectors Pins,gas,Cylinder
    Mould Life 》300,000 Shots ,Different steel with different mold life
    Production Time  Production Time
    Mould Parts   Standard Mold Parts
    Mould Quality Levels Level A quality(Highest Level Quality), Level B quality(Middle Level Quality), Level C quality(Lowest Level Quality) , different level with different price
    Attention  When you send us the mould inquiry, please offer the following information:
    1) Quality level you choose: Level A/Level B/Level C
    2) Photo together with dimension/ drawing design
    Mould Quality Control      For the Q/C of mould, there are 3 steps:
    1.Mould Material Q/C
    - Mould Steel Checking,Standard Spare Parts Checking
    2. Mould Making Process Q/C
    - Design checking ,Each part of mould’s size checking after machining according to 2D drawing , Mould testing
    3.Check with customer’s requirement again before mould shipping.



    The Main Mould Steel and Hardness for you reference
    Steel Grade S50C      P20        P20H       718H     2738H     H13        S136     NAK80
    Hardness(HRC)    17-22 27-30 33-37 33-38 36-40 48-52 48-52 34-40



    Mould Processing Detail Time Schedule
    Prepare Mold Steel  CNC Machining  Precision CNC Machining  Drill          Polishing&Carving  Assembling and Fitting   T1 Mould Test
    5 days 10 days 5 days  5days  3-5 days  5 days  2 days



     Mold production process

    1. Product design (customers can provide complete 3D files or sample)
    2. Rapid prototyping of products (if needed)
    3. Mold design
    4. Mold inspection and mold flow analysis
    5. Mold processing (including the use of computer numerical control (CNC) and EDM technology)
    6. The first tryout
    7. Mold modification and skin texture
    8. Delivery

    why choose deying mould company_1

    Mold accessories_1



    Taizhou Huangyan Deying Mould Co.,Ltd., is a professional production of plastic injection mould,fiber glass(SMC/BMC) compression mould more than 10 years experience.Welcome you contact with us!

    taizhou mold Factory Mould maker_1

    Deying molding sample room_3

    Deying Mould production process_1

    Deying Mould Shipping_1

    1. Q: Are you trading company or manufacturer ?

        A: We are factory.

    2. Q: How long is your delivery time ?

        A: Generally it is 30-50 after client payment deposit and also confirm drawing. Different mold with different delivery time.

    3. Q: Can you help us with the design ?

        A: YES,We’ll be free to help with you design based on your 3D/Sample .

    4. Q: Do you provide samples ? is it free or extra ?

        A: YES,we will be send free sample for you confirm after we finished mold and test it .

    5. Q: What is your terms of payment ?

        A: T/T(50% T/T first payment + 50% T/T at samples confirmation , before shipment.).
        If you have another question, pls feel free to contact us as below:

    6. Q: What size range of molds can you make ?

         A: The mold can be up to 4 meters in length, 2.8 in width and 40 tons in weight .

    7. Q: Have you ever done an injection mold and SMC/BMC/DMC/FRP mold ?

         A: Yes,We offer this service to our customers and have gained extensive experience in this field.Now our smc mold, bmc mold,  dmc mold, and frp mold technology are at the forefront of China and become the leading enterprise of composite molds in China

    8. Q: Do you make hot runner molds ?

         A: Yes,we are skilled in using a variety of different hot runners such as D-M-E, YUDO, Mold-master, Synventive, husky, PSG,HASCO, etc. For the mold you want to machine, you can choose the hot runner system that you are satisfied with.

    9. Q: What’s the format of file is available for you ?

         A: We can accept different file formats such as IGES, DXF, DWG, STP, PRT, X_T, PDF, etc .

    10. Q: Which plastic materials do you use ?

          A: ABS, PP, PC, PE, HDPE, POM, PA6, PA66, PA6+GF, PS, PMMA, TPU, TPE, PVC, etc. We have extensive experience in the injection molding process of these materials, and adjust the injection molding parameters to get the perfect plastic products.

    11. Q: Mold packaging and shipping methods ?

          A: When the mold is finished, we will apply a layer of anti-rust paint on the surface, then wrap it in plastic film, wrap it and put it into a sterilized wooden box.

          Additional Documents:1. A1 paper size assembly drawing; 2. Electrode description; 3. Hanging ring, screw description; 4. Material proof; 5. Mold brake device and other necessary accessories.

    12. Q: Do you sign a confidentiality agreement ?

          A: Yes,We understand the importance of design to you. Signing a confidentiality agreement is also our company’s policy. We may not disclose or copy any design or ideas about your company’s products or your company’s information to third parties without your permission .
